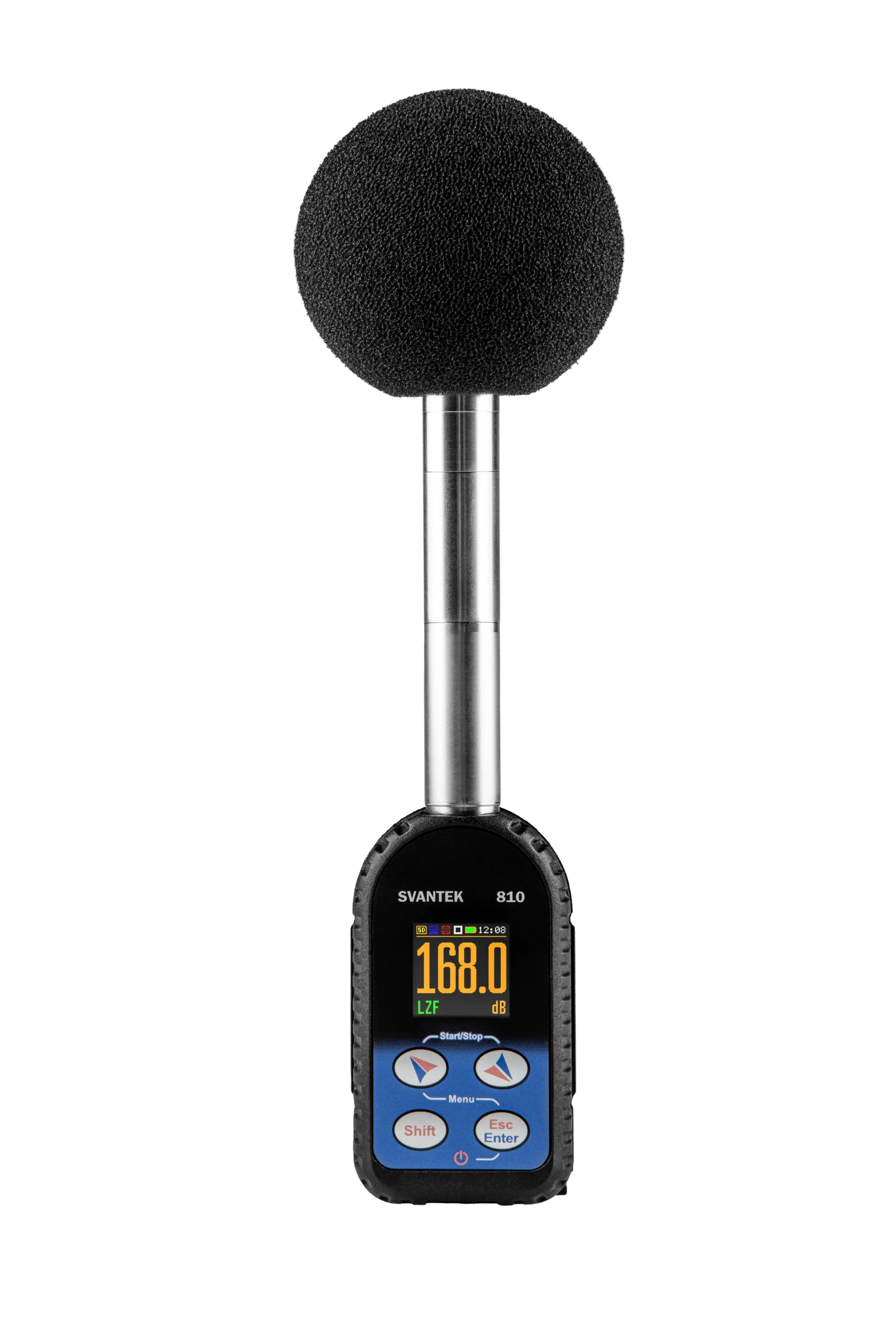

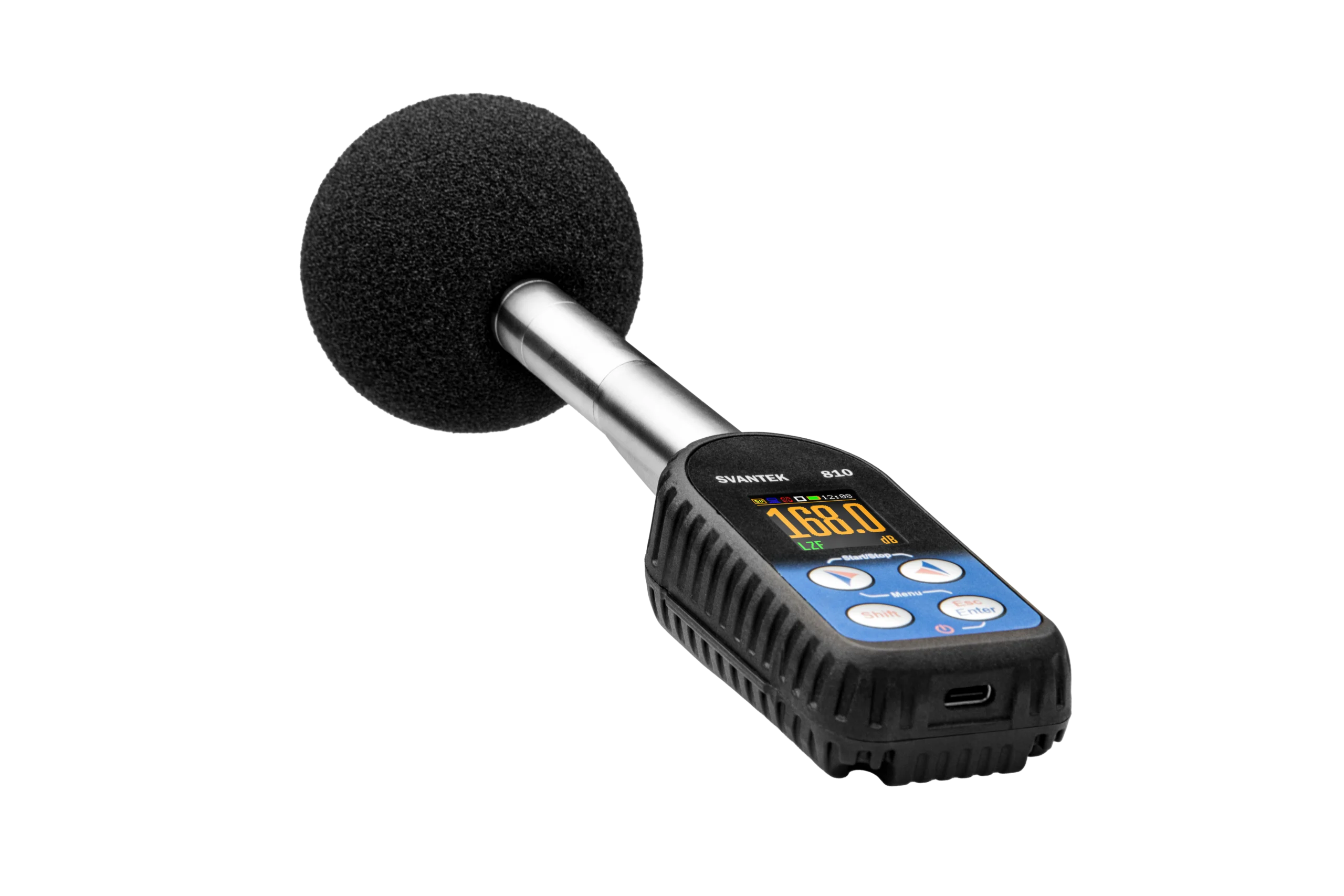

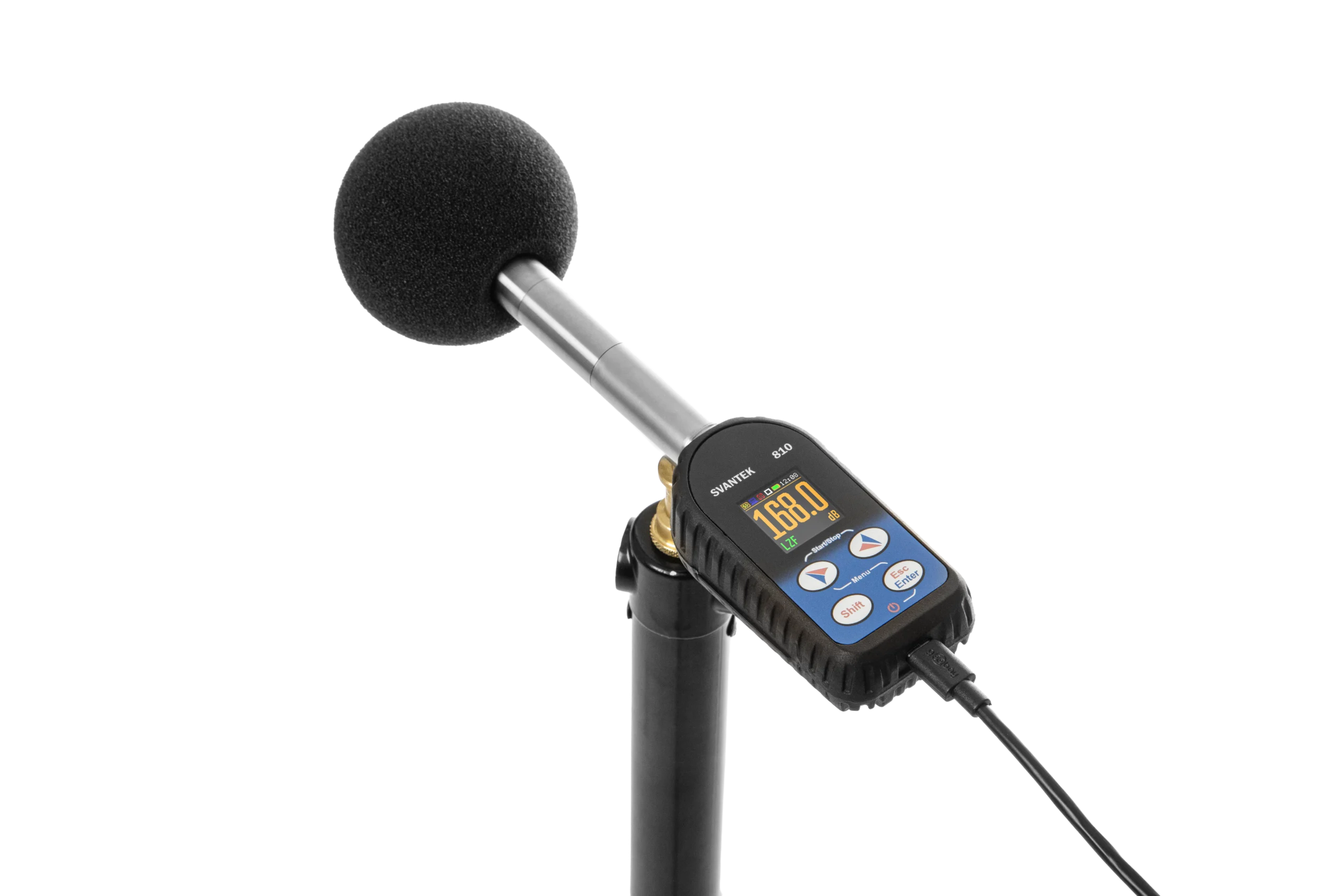

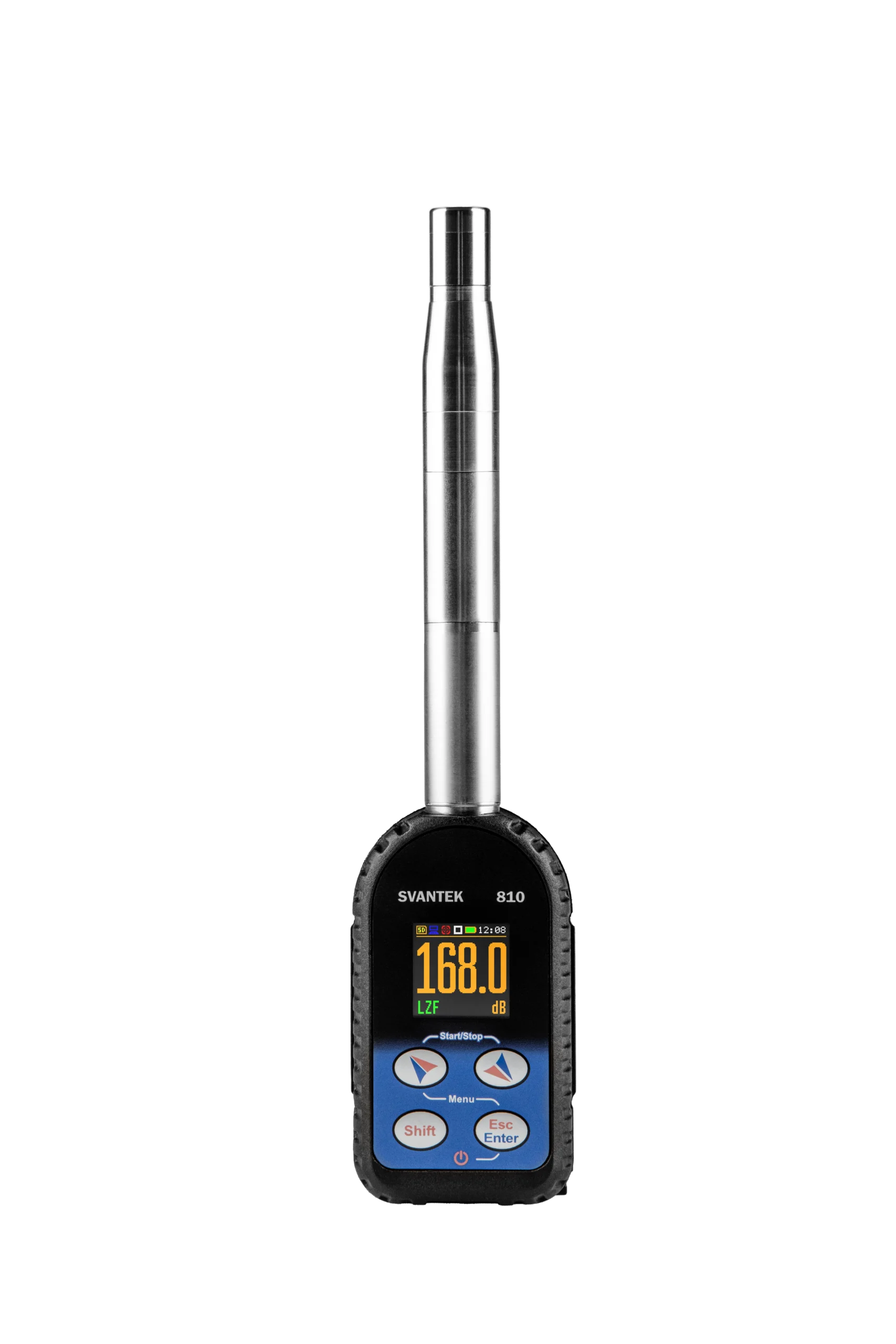

SV 810 AIR-OVERPRESSURE METER FOR BLAST MONITORING
Designed for mining, quarrying, construction blasting and demolition projects, the SV 810 combines high dynamic range, low-frequency performance and seamless integration with SVANTEK monitoring systems. Fully compliant with the latest ISEE Blasting Seismograph Standards (2022), it provides reliable documentation for regulatory compliance and project reporting.

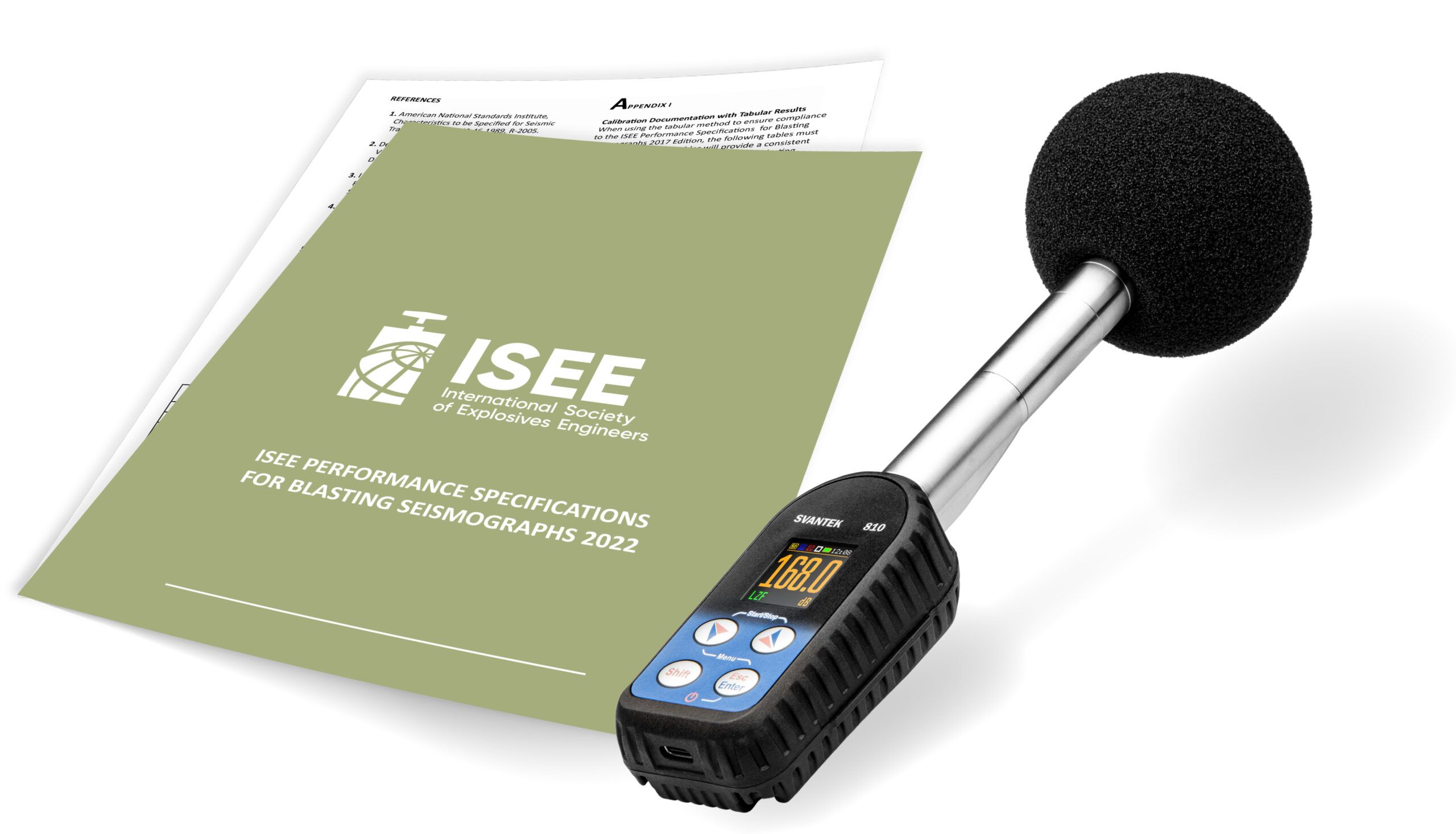

- ISEE 2022 Compliant — engineered specifically for blast overpressure measurements
- Extended Measurement Range — captures events up to 168 dB Peak

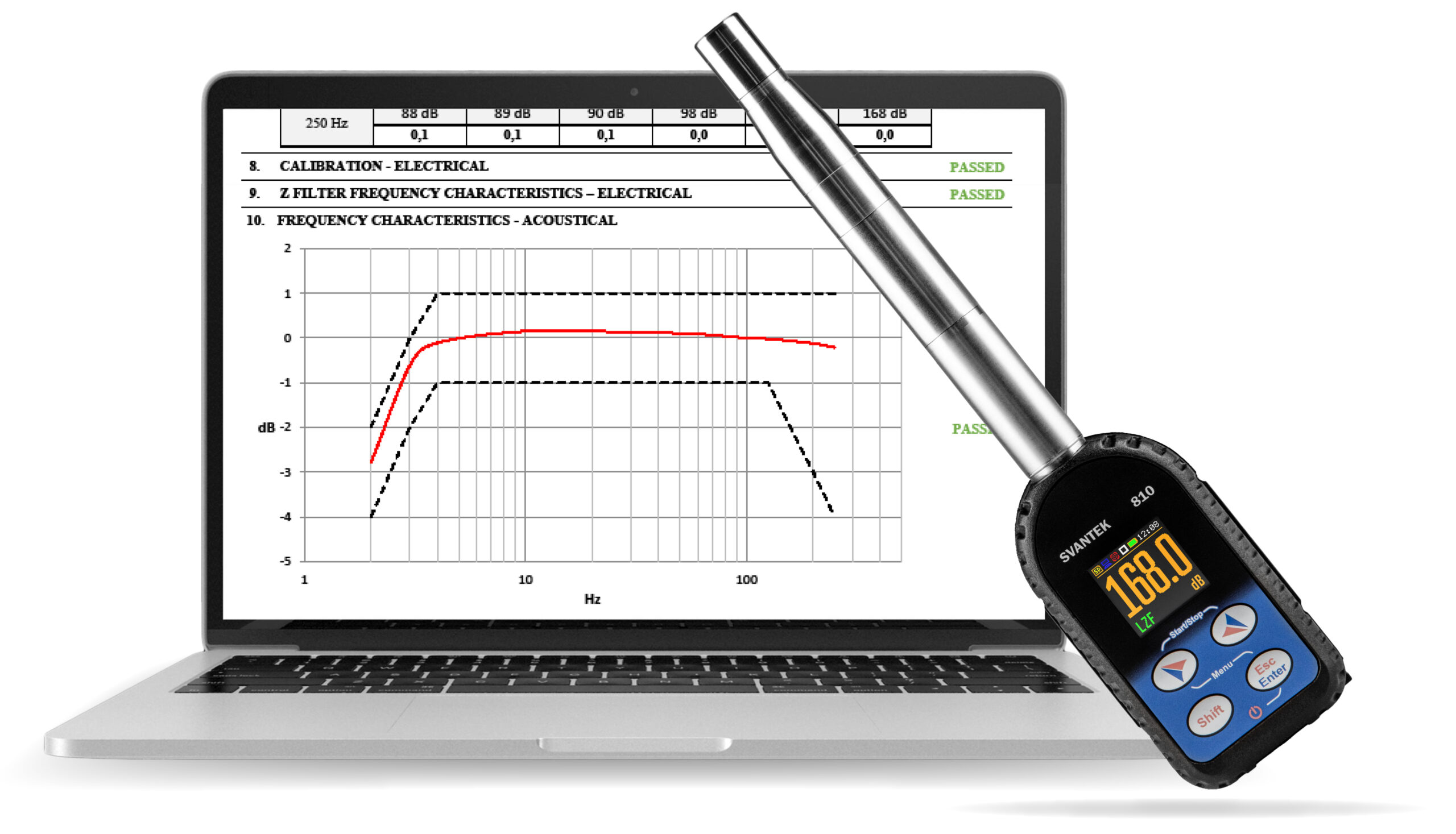

- Low Frequency Performance — accurate measurements from 2 Hz to 250 Hz
- Standalone or Networked — works independently or connects with SV 803, SV 804 and SD 311
- Time History & WAV Recording — record blast events for detailed post-analysis and documentation
- Integrated FFT Analysis — optional real-time 1600-line FFT with dominant frequency calculation
- 8 GB Internal Memory — extensive onboard data logging without external devices
- Up to 8 Hours Battery Operation — ideal for field measurements

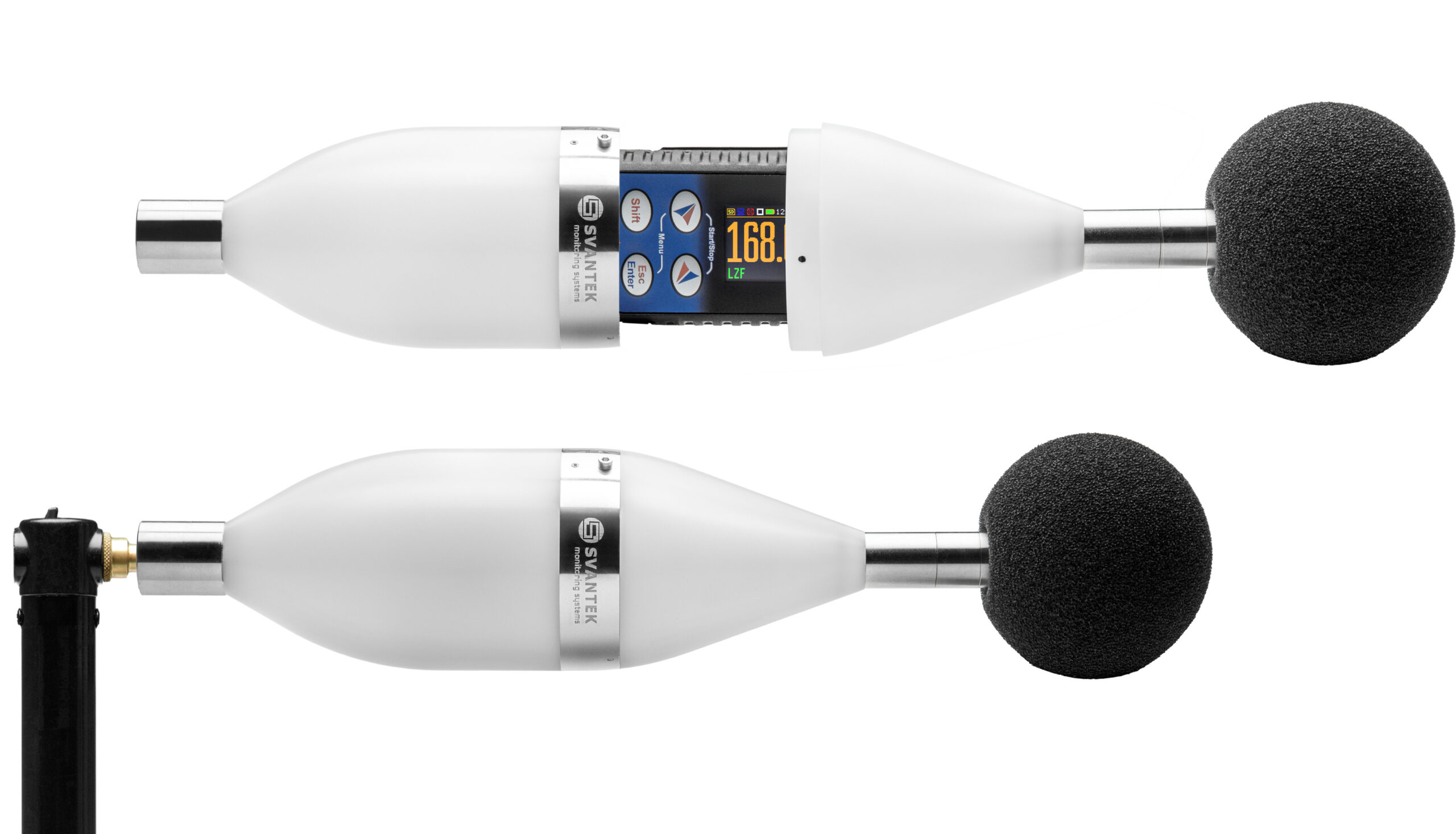

- Weather Resistant Solution — optional SA 810 enclosure increases protection to IP65 for unattended outdoor monitoring
- MEMS-Based Sensor Technology — stable performance in demanding industrial environments

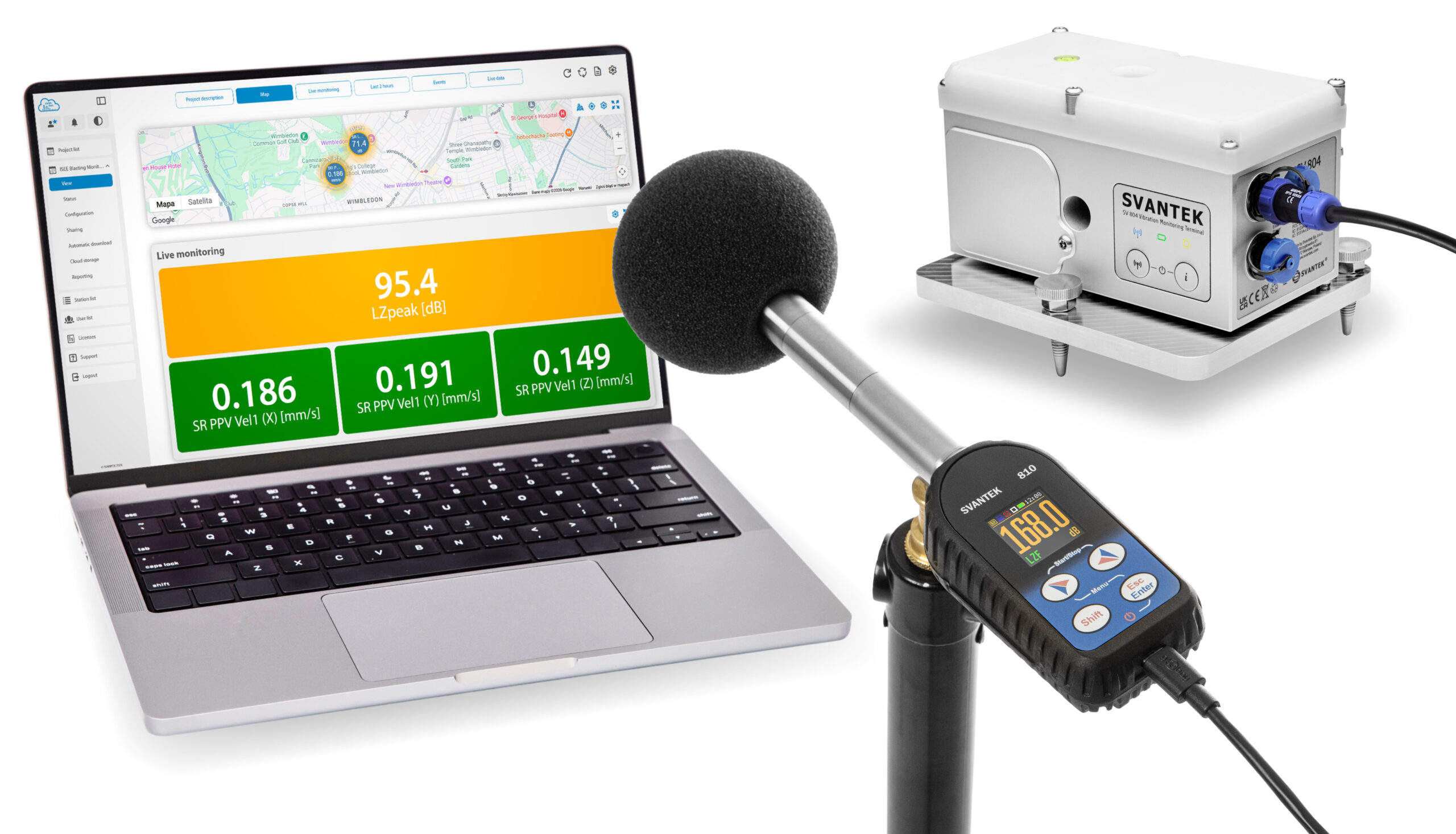

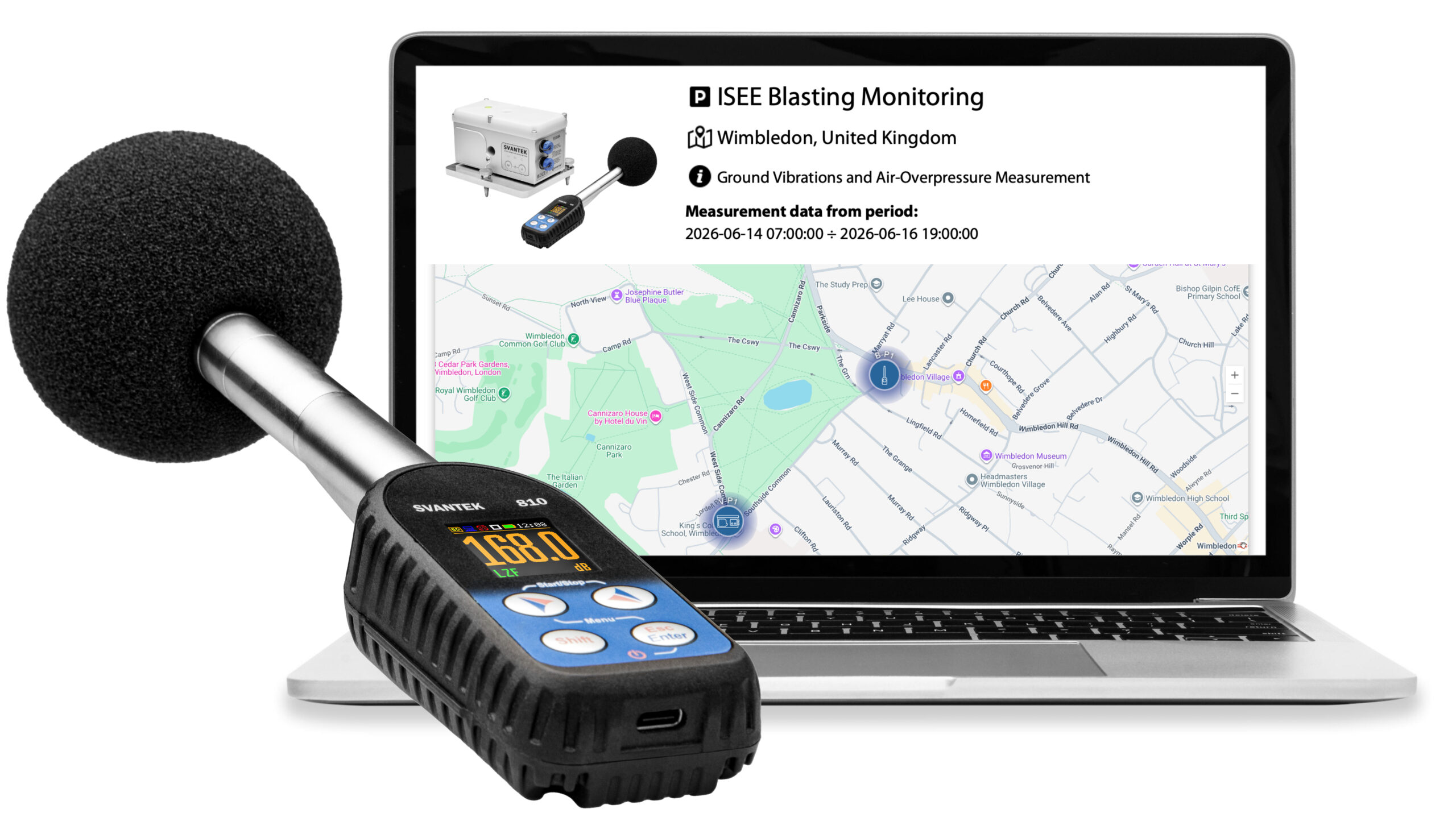

From temporary blast surveys to permanent monitoring installations, the SV 810 provides dependable overpressure measurements while integrating seamlessly with the SvanNET ecosystem for synchronized vibration and air-overpressure monitoring.
